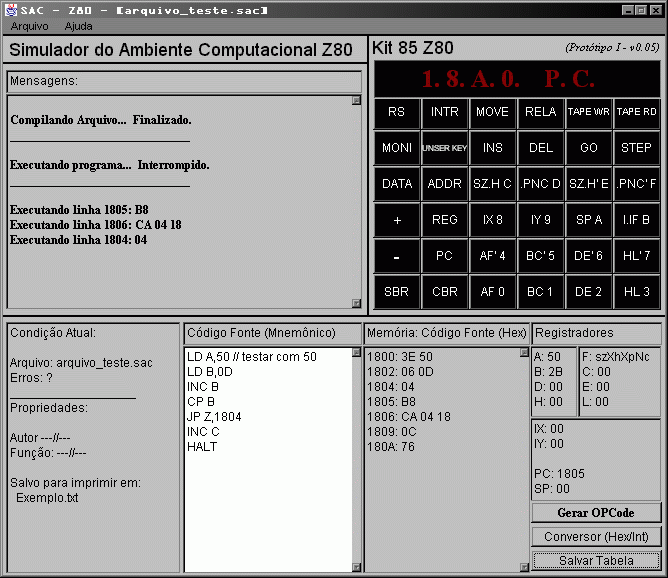

Protótipo do Simulador do Ambiente Computacional Z80
Código dos registradores na implementação do Kit 85Z80
| Registradores | Registrador Flag 11 | |||
| A=0 | F=11 | 0. | C=Carry | |
| B=1 | C=2 | 1. | N=Operação: Subtração(1) / Adição(0) | |
| D=3 | E=4 | 2. | P=Paridade/Overflow | |
| H=5 | L=6 | 4. | H=Meio Carry | |
| IX=7 | IY=8 | 6. | Z=Zero: Resultado(00), Z=1 | |
| SP=9 | PC=10 | 7. | S=Sinal: Positivo(0) / Negativo(1) | |
Tabela de Códigos Operacionais da linguagem Assembly Zilog Z80
Legenda dos progressos efetuados: [ R O E F ]
- Comando está sendo (R)econhecido;
- Código (O)peracional do comando está sendo gerado;
- Comando está sendo (E)xecutado;
- Comando está alterando o (F)lag;
- (X) comando não pussui característica indicada.
| R O E F | COMANDO | CÓDIGO | R O E F | COMANDO | CÓDIGO | |
| R | ADC A,(HL) | 8E | R O E | LD L,A | 6F | |
| R | ADC A,(IX+d) | DD 8E d | R O E | LD L,B | 68 | |
| R | ADC A,(IY+d) | FD 8E d | R O E | LD L,C | 69 | |
| R O | ADC A,A | 8F | R O E | LD L,D | 6A | |
| R O | ADC A,B | 88 | R O E | LD L,E | 6B | |
| R O | ADC A,C | 89 | R O E | LD L,H | 6C | |
| R O | ADC A,D | 8A | R O E | LD L,L | 6D | |
| R O | ADC A,E | 8B | R O E | LD L,n | 2E n | |
| R O | ADC A,H | 8C | R O | LD R,A | ED 4F | |
| R O | ADC A,L | 8D | R O | LD SP,(nn) | ED 7B nnL nnH | |
| R O | ADC A,n | CE n | R O | LD SP,HL | F9 | |
| R | ADC HL,BC | ED 4A | R O | LD SP,IX | DD F9 | |
| R | ADC HL,DE | ED 5A | R O | LD SP,IY | FD F9 | |
| R | ADC HL,HL | ED 6A | R O | LD SP,nn | 31 nnL nnH | |
| R | ADC HL,SP | ED 7A | R | LDD | ED A8 | |
| R | ADD A,(HL) | 86 | R | LDDR | ED B8 | |
| R | ADD A,(IX+d) | DD 86 d | R | LDI | ED A0 | |
| R | ADD A,(IY+d) | FD 86 d | R | LDIR | ED B0 | |
| R O E | ADD A,A | 87 | R | NEG | ED 44 | |
| R O E | ADD A,B | 80 | R O | NOP | 00 | |
| R O E | ADD A,C | 81 | R | OR (HL) | B6 | |
| R O E | ADD A,D | 82 | R | OR (IX+d) | DD B6 d | |
| R O E | ADD A,E | 83 | R | OR (IY+d) | FD B6 d | |
| R O E | ADD A,H | 84 | R O | OR A | B7 | |
| R O E | ADD A,L | 85 | R O | OR B | B0 | |
| R O E | ADD A,n | C6 n | R O | OR C | B1 | |
| R | ADD HL,BC | 09 | R O | OR D | B2 | |
| R | ADD HL,DE | 19 | R O | OR E | B3 | |
| R | ADD HL,HL | 29 | R O | OR H | B4 | |
| R | ADD HL,SP | 39 | R O | OR L | B5 | |
| R | ADD IX,BC | DD 09 | R O | OR n | F6 n | |
| R | ADD IX,DE | DD 19 | R | OTDR | ED BB | |
| R | ADD IX,IX | DD 29 | R | OTIR | ED B3 | |
| R | ADD IX,SP | DD 39 | R | OUT (C),A | ED 79 | |
| R | ADD IY,BC | FD 09 | R | OUT (C),B | ED 41 | |
| R | ADD IY,DE | FD 19 | R | OUT (C),C | ED 49 | |
| R | ADD IY,IY | FD 29 | R | OUT (C),D | ED 51 | |
| R | ADD IY,SP | FD 39 | R | OUT (C),E | ED 59 | |
| R | AND (HL) | A6 | R | OUT (C),H | ED 61 | |
| R | AND (IX+d) | DD A6 d | R | OUT (C),L | ED 69 | |
| R | AND (IY+d) | FD A6 d | R | OUT (n),A | D3 n | |
| R O | AND A | A7 | R | OUTD | ED AB | |
| R O | AND B | A0 | R | OUTI | ED A3 | |
| R O | AND C | A1 | R | POP AF | F1 | |
| R O | AND D | A2 | R | POP BC | C1 | |
| R O | AND E | A3 | R | POP DE | D1 | |
| R O | AND H | A4 | R | POP HL | E1 | |
| R O | AND L | A5 | R | POP IX | DD E1 | |
| R O | AND n | E6 n | R | POP IY | FD E1 | |
| R | BIT 0,(HL) | CB 46 | R | PUSH AF | F5 | |
| R | BIT 0,(IX+d) | DD CB d 46 | R | PUSH BC | C5 | |
| R | BIT 0,(IY+d) | FD CB d 46 | R | PUSH DE | D5 | |
| R | BIT 0,A | CB 47 | R | PUSH HL | E5 | |
| R | BIT 0,B | CB 40 | R | PUSH IX | DD E5 | |
| R | BIT 0,C | CB 41 | R | PUSH IY | FD E5 | |
| R | BIT 0,D | CB 42 | R | RES 0,(HL) | CB 86 | |
| R | BIT 0,E | CB 43 | R | RES 0,(IX+d) | DD CB d 86 | |
| R | BIT 0,H | CB 44 | R | RES 0,(IY+d) | FD CB d 86 | |
| R | BIT 0,L | CB 45 | R | RES 0,A | CB 87 | |
| R | BIT 1,(HL) | CB 4E | R | RES 0,B | CB 80 | |
| R | BIT 1,(IX+d) | DD CB d 4E | R | RES 0,C | CB 81 | |
| R | BIT 1,(IY+d) | FD CB d 4E | R | RES 0,D | CB 82 | |
| R | BIT 1,A | CB 4F | R | RES 0,E | CB 83 | |
| R | BIT 1,B | CB 48 | R | RES 0,H | CB 84 | |
| R | BIT 1,C | CB 49 | R | RES 0,L | CB 85 | |
| R | BIT 1,D | CB 4A | R | RES 1,(HL) | CB 8E | |
| R | BIT 1,E | CB 4B | R | RES 1,(IX+d) | DD CB d 8E | |
| R | BIT 1,H | CB 4C | R | RES 1,(IY+d) | FD CB d 8E | |
| R | BIT 1,L | CB 4D | R | RES 1,A | CB 8F | |
| R | BIT 2,(HL) | CB 56 | R | RES 1,B | CB 88 | |
| R | BIT 2,(IX+d) | DD CB d 56 | R | RES 1,C | CB 89 | |
| R | BIT 2,(IY+d) | FD CB d 56 | R | RES 1,D | CB 8A | |
| R | BIT 2,A | CB 57 | R | RES 1,E | CB 8B | |
| R | BIT 2,B | CB 50 | R | RES 1,H | CB 8C | |
| R | BIT 2,C | CB 51 | R | RES 1,L | CB 8D | |
| R | BIT 2,D | CB 52 | R | RES 2,(HL) | CB 96 | |
| R | BIT 2,E | CB 53 | R | RES 2,(IX+d) | DD CB d 96 | |
| R | BIT 2,H | CB 54 | R | RES 2,(IY+d) | FD CB d 96 | |
| R | BIT 2,L | CB 55 | R | RES 2,A | CB 97 | |
| R | BIT 3,(HL) | CB 5E | R | RES 2,B | CB 90 | |
| R | BIT 3,(IX+d) | DD CB d 5E | R | RES 2,C | CB 91 | |
| R | BIT 3,(IY+d) | FD CB d 5E | R | RES 2,D | CB 92 | |
| R | BIT 3,A | CB 5F | R | RES 2,E | CB 93 | |
| R | BIT 3,B | CB 58 | R | RES 2,H | CB 94 | |
| R | BIT 3,C | CB 59 | R | RES 2,L | CB 95 | |
| R | BIT 3,D | CB 5A | R | RES 3,(HL) | CB 9E | |
| R | BIT 3,E | CB 5B | R | RES 3,(IX+d) | DD CB d 9E | |
| R | BIT 3,H | CB 5C | R | RES 3,(IY+d) | FD CB d 9E | |
| R | BIT 3,L | CB 5D | R | RES 3,A | CB 9F | |
| R | BIT 4,(HL) | CB 66 | R | RES 3,B | CB 98 | |
| R | BIT 4,(IX+d) | DD CB d 66 | R | RES 3,C | CB 99 | |
| R | BIT 4,(IY+d) | FD CB d 66 | R | RES 3,D | CB 9A | |
| R | BIT 4,A | CB 67 | R | RES 3,E | CB 9B | |
| R | BIT 4,B | CB 60 | R | RES 3,H | CB 9C | |
| R | BIT 4,C | CB 61 | R | RES 3,L | CB 9D | |
| R | BIT 4,D | CB 62 | R | RES 4,(HL) | CB A6 | |
| R | BIT 4,E | CB 63 | R | RES 4,(IX+d) | DD CB d A6 | |
| R | BIT 4,H | CB 64 | R | RES 4,(IY+d) | FD CB d A6 | |
| R | BIT 4,L | CB 65 | R | RES 4,A | CB A7 | |
| R | BIT 5,(HL) | CB 6E | R | RES 4,B | CB A0 | |
| R | BIT 5,(IX+d) | DD CB d 6E | R | RES 4,C | CB A1 | |
| R | BIT 5,(IY+d) | FD CB d 6E | R | RES 4,D | CB A2 | |
| R | BIT 5,A | CB 6F | R | RES 4,E | CB A3 | |
| R | BIT 5,B | CB 68 | R | RES 4,H | CB A4 | |
| R | BIT 5,C | CB 69 | R | RES 4,L | CB A5 | |
| R | BIT 5,D | CB 6A | R | RES 5,(HL) | CB AE | |
| R | BIT 5,E | CB 6B | R | RES 5,(IX+d) | DD CB d AE | |
| R | BIT 5,H | CB 6C | R | RES 5,(IY+d) | FD CB d AE | |
| R | BIT 5,L | CB 6D | R | RES 5,A | CB AF | |
| R | BIT 6,(HL) | CB 76 | R | RES 5,B | CB A8 | |
| R | BIT 6,(IX+d) | DD CB d 76 | R | RES 5,C | CB A9 | |
| R | BIT 6,(IY+d) | FD CB d 76 | R | RES 5,D | CB AA | |
| R | BIT 6,A | CB 77 | R | RES 5,E | CB AB | |
| R | BIT 6,B | CB 70 | R | RES 5,H | CB AC | |
| R | BIT 6,C | CB 71 | R | RES 5,L | CB AD | |
| R | BIT 6,D | CB 72 | R | RES 6,(HL) | CD B6 | |
| R | BIT 6,E | CB 73 | R | RES 6,(IX+d) | DD CB d B6 | |
| R | BIT 6,H | CB 74 | R | RES 6,(IY+d) | FD CB d B6 | |
| R | BIT 6,L | CB 75 | R | RES 6,A | CB B7 | |
| R | BIT 7,(HL) | CB 7E | R | RES 6,B | CB B0 | |
| R | BIT 7,(IX+d) | DD CB d 7E | R | RES 6,C | CB B1 | |
| R | BIT 7,(IY+d) | FD CB d 7E | R | RES 6,D | CB B2 | |
| R | BIT 7,A | CB 7F | R | RES 6,E | CB B3 | |
| R | BIT 7,B | CB 78 | R | RES 6,H | CB B4 | |
| R | BIT 7,C | CB 79 | R | RES 6,L | CB B5 | |
| R | BIT 7,D | CB 7A | R | RES 7,(HL) | CB BE | |
| R | BIT 7,E | CB 7B | R | RES 7,(IX+d) | DD CB d BE | |
| R | BIT 7,H | CB 7C | R | RES 7,(IY+d) | FD CB d BE | |
| R | BIT 7,L | CB 7D | R | RES 7,A | CB BF | |
| R | CALL C,nn | DC nnL nnH | R | RES 7,B | CB B8 | |
| R | CALL M,nn | FC nnL nnH | R | RES 7,C | CB B9 | |
| R | CALL NC,nn | D4 nnL nnH | R | RES 7,D | CB BA | |
| R | CALL nn | CD nnL nnH | R | RES 7,E | CB BB | |
| R | CALL NZ,nn | C4 nnL nnH | R | RES 7,H | CB BC | |
| R | CALL P,nn | F4 nnL nnH | R | RES 7,L | CB BD | |
| R | CALL PE,nn | EC nnL nnH | R O | RET | C9 | |
| R | CALL PO,nn | E4 nnL nnH | R O | RET C | D8 | |
| R | CALL Z,nn | CC nnL nnH | R O | RET M | F8 | |
| R O | CCF | 3F | R O | RET NC | D0 | |
| R | CP (HL) | BE | R O | RET NZ | C0 | |
| R | CP (IX+d) | DD BE d | R O | RET P | F0 | |
| R | CP (IY+d) | FD BE d | R O | RET PE | E8 | |
| R O E F | CP A | BF | R O | RET PO | E0 | |
| R O E F | CP B | B8 | R O | RET Z | C8 | |
| R O E F | CP C | B9 | R | RETI | ED 4D | |
| R O E F | CP D | BA | R | RETN | ED 45 | |
| R O E F | CP E | BB | R | RL (HL) | CB 16 | |
| R O E F | CP H | BC | R | RL (IX+d) | DD CB d 16 | |
| R O E F | CP L | BD | R | RL (IY+d) | FD CB d 16 | |
| R O E F | CP n | FE n | R | RL A | CB 17 | |
| R | CPD | ED A9 | R | RL B | CB 10 | |
| R | CPDR | ED B9 | R | RL C | CB 11 | |
| R | CPI | ED A1 | R | RL D | CB 12 | |
| R | CPIR | ED B1 | R | RL E | CB 13 | |
| R O | CPL | 2F | R | RL H | CB 14 | |
| R O | DAA | 27 | R | RL L | CB 15 | |
| R | DEC (HL) | 35 | R O | RLA | 17 | |
| R | DEC (IX+d) | DD 35 d | R | RLC (HL) | CB 06 | |
| R | DEC (IY+d) | FD 35 d | R | RLC (IX+d) | DD CB d 06 | |
| R O E | DEC A | 3D | R | RLC (IY+d) | FD CB d 06 | |
| R O E | DEC B | 05 | R | RLC A | CB 07 | |
| R O E | DEC BC | 0B | R | RLC B | CB 00 | |
| R O E | DEC C | 0D | R | RLC C | CB 01 | |
| R O E | DEC D | 15 | R | RLC D | CB 02 | |
| R O E | DEC DE | 1B | R | RLC E | CB 03 | |
| R O E | DEC E | 1D | R | RLC H | CB 04 | |
| R O E | DEC H | 25 | R | RLC L | CB 05 | |
| R O E | DEC HL | 2B | R O | RLCA | 07 | |
| R | DEC IX | DD 2B | R | RLD | ED 6F | |
| R | DEC IY | FD 2B | R | RR (HL) | CB 1E | |
| R O E | DEC L | 2D | R | RR (IX+d) | DD CB d 1E | |
| R O | DEC SP | 3B | R | RR (IY+d) | FD CB d 1E | |
| R O | DI | F3 | R | RR A | CB 1F | |
| R | DJNZ d | 10 d | R | RR B | CB 18 | |
| R O | EI | FB | R | RR C | CB 19 | |
| R | EX (SP),HL | E3 | R | RR D | CB 1A | |
| R | EX (SP),IX | DD E3 | R | RR E | CB 1B | |
| R | EX (SP),IY | FD E3 | R | RR H | CB 1C | |
| R | EX AF,AF' | 08 | R | RR L | CB 1D | |
| R | EX DE,HL | EB | R O | RRA | 1F | |
| R O | EXX | D9 | R | RRC (HL) | CB 0E | |
| R O E | HALT | 76 | R | RRC (IX+d) | DD CB d 0E | |
| R | IM 0 | ED 46 | R | RRC (IY+d) | FD CB d 0E | |
| R | IM 1 | ED 56 | R | RRC A | CB 0F | |
| R | IM 2 | ED 5E | R | RRC B | CB 08 | |
| R | IN A,(C) | ED 78 | R | RRC C | CB 09 | |
| R | IN A,(n) | DB n | R | RRC D | CB 0A | |
| R | IN B,(C) | ED 40 | R | RRC E | CB 0B | |
| R | IN C,(C) | ED 48 | R | RRC H | CB 0C | |
| R | IN D,(C) | ED 50 | R | RRC L | CB 0D | |
| R | IN E,(C) | ED 58 | R O | RRCA | 0F | |
| R | IN H,(C) | ED 60 | R | RRD | ED 67 | |
| R | IN L,(C) | ED 68 | R O | RST 00H | C7 | |
| R | INC (HL) | 34 | R O | RST 08H | CF | |
| R | INC (IX+d) | DD 34 d | R O | RST 10H | D7 | |
| R | INC (IY+d) | FD 34 d | R O | RST 18H | DF | |
| R O E | INC A | 3C | R O | RST 20H | E7 | |
| R O E | INC B | 04 | R O | RST 28H | EF | |
| R O E | INC BC | 03 | R O | RST 30H | F7 | |
| R O E | INC C | 0C | R O | RST 38H | FF | |
| R O E | INC D | 14 | R | SBC A,(HL) | 9E | |
| R O E | INC DE | 13 | R | SBC A,(IX+d) | DD 9E d | |
| R O E | INC E | 1C | R | SBC A,(IY+d) | FD 9E d | |
| R O E | INC H | 24 | R O | SBC A,A | 9F | |
| R O E | INC HL | 23 | R O | SBC A,B | 98 | |
| R | INC IX | DD 23 | R O | SBC A,C | 99 | |
| R | INC IY | FD 23 | R O | SBC A,D | 9A | |
| R O E | INC L | 2C | R O | SBC A,E | 9B | |
| R O | INC SP | 33 | R O | SBC A,H | 9C | |
| R | IND | ED AA | R O | SBC A,L | 9D | |
| R | INDR | ED BA | R O | SBC A,n | DE n | |
| R | INI | ED A2 | R | SBC HL,BC | ED 42 | |
| R | INIR | ED B2 | R | SBC HL,DE | ED 52 | |
| R | JP (HL) | E9 | R | SBC HL,HL | ED 62 | |
| R | JP (IX) | DD E9 | R | SBC HL,SP | ED 72 | |
| R | JP (IY) | FD E9 | R O | SCF | 37 | |
| R O E | JP C,nn | DA nnL nnH | R | SET 0,(HL) | CB C6 | |
| R O | JP M,nn | FA nnL nnH | R | SET 0,(IX+d) | DD CB d C6 | |
| R O E | JP NC,nn | D2 nnL nnH | R | SET 0,(IY+d) | FD CB d C6 | |
| R O E X | JP nn | C3 nnL nnH | R | SET 0,A | CB C7 | |
| R O E | JP NZ,nn | C2 nnL nnH | R | SET 0,B | CB C0 | |
| R O | JP P,nn | F2 nnL nnH | R | SET 0,C | CB C1 | |
| R O | JP PE,nn | EA nnL nnH | R | SET 0,D | CB C2 | |
| R O | JP PO,nn | E2 nnL nnH | R | SET 0,E | CB C3 | |
| R O E | JP Z,nn | CA nnL nnH | R | SET 0,H | CB C4 | |
| R | JR C,d | 38 d | R | SET 0,L | CB C5 | |
| R | JR d | 18 d | R | SET 1,(HL) | CB CE | |
| R | JR NC,d | 30 d | R | SET 1,(IX+d) | DD CB d CE | |
| R | JR NZ,d | 20 d | R | SET 1,(IY+d) | FD CB d CE | |
| R | JR Z,d | 28 d | R | SET 1,A | CB CF | |
| R | LD (BC),A | 02 | R | SET 1,B | CB C8 | |
| R | LD (DE),A | 12 | R | SET 1,C | CB C9 | |
| R | LD (HL),A | 77 | R | SET 1,D | CB CA | |
| R | LD (HL),B | 70 | R | SET 1,E | CB CB | |
| R | LD (HL),C | 71 | R | SET 1,H | CB CC | |
| R | LD (HL),D | 72 | R | SET 1,L | CB CD | |
| R | LD (HL),E | 73 | R | SET 2,(HL) | CB D6 | |
| R | LD (HL),H | 74 | R | SET 2,(IX+d) | DD CB d D6 | |
| R | LD (HL),L | 75 | R | SET 2,(IY+d) | FD CB d D6 | |
| R | LD (HL),n | 36 n | R | SET 2,A | CB D7 | |
| R | LD (IX+d),A | DD 77 d | R | SET 2,B | CB D0 | |
| R | LD (IX+d),B | DD 70 d | R | SET 2,C | CB D1 | |
| R | LD (IX+d),C | DD 71 d | R | SET 2,D | CB D2 | |
| R | LD (IX+d),D | DD 72 d | R | SET 2,E | CB D3 | |
| R | LD (IX+d),E | DD 73 d | R | SET 2,H | CB D4 | |
| R | LD (IX+d),H | DD 74 d | R | SET 2,L | CB D5 | |
| R | LD (IX+d),L | DD 75 d | R | SET 3,(HL) | CB DE | |
| R | LD (IX+d),n | DD 36 d n | R | SET 3,(IX+d) | DD CB d DE | |
| R | LD (IY+d),A | FD 77 d | R | SET 3,(IY+d) | FD CB d DE | |
| R | LD (IY+d),B | FD 70 d | R | SET 3,A | CB DF | |
| R | LD (IY+d),C | FD 71 d | R | SET 3,B | CB D8 | |
| R | LD (IY+d),D | FD 72 d | R | SET 3,C | CB D9 | |
| R | LD (IY+d),E | FD 73 d | R | SET 3,D | CB DA | |
| R | LD (IY+d),H | FD 74 d | R | SET 3,E | CB DB | |
| R | LD (IY+d),L | FD 75 d | R | SET 3,H | CB DC | |
| R | LD (IY+d),n | FD 36 d n | R | SET 3,L | CB DD | |
| R | LD (nn),A | 32 nnL nnH | R | SET 4,(HL) | CB 6E | |
| R | LD (nn),BC | ED 43 nnL nnH | R | SET 4,(IX+d) | DD CB d E6 | |
| R | LD (nn),DE | ED 53 nnL nnH | R | SET 4,(IY+d) | FD CB d E6 | |
| R | LD (nn),HL | 22 nnL nnH / ED 63 nnL nnH | R | SET 4,A | CB E7 | |
| R | LD (nn),IX | DD 22 nnL nnH | R | SET 4,B | CB E0 | |
| R | LD (nn),IY | FD 22 nnL nnH | R | SET 4,C | CB E1 | |
| R | LD (nn),SP | ED 73 nnL nnH | R | SET 4,D | CB E2 | |
| R O | LD A,(BC) | 0A | R | SET 4,E | CB E3 | |
| R O | LD A,(DE) | 1A | R | SET 4,H | CB E4 | |
| R O | LD A,(HL) | 7E | R | SET 4,L | CB E5 | |
| R O | LD A,(IX+d) | DD 7E d | R | SET 5,(HL) | CB EE | |
| R O | LD A,(IY+d) | FD 7E d | R | SET 5,(IX+d) | DD CB d EE | |
| R O | LD A,(nn) | 3A nnL nnH | R | SET 5,(IY+d) | FD CB d EE | |
| R O E | LD A,A | 7F | R | SET 5,A | CB EF | |
| R O E | LD A,B | 78 | R | SET 5,B | CB E8 | |
| R O E | LD A,C | 79 | R | SET 5,C | CB E9 | |
| R O E | LD A,D | 7A | R | SET 5,D | CB EA | |
| R O E | LD A,E | 7B | R | SET 5,E | CB EB | |
| R O E | LD A,H | 7C | R | SET 5,H | CB EC | |
| R O | LD A,I | ED 57 | R | SET 5,L | CB ED | |
| R O E | LD A,L | 7D | R | SET 6,(HL) | CB F6 | |
| R O E | LD A,n | 3E n | R | SET 6,(IX+d) | DD CB d F6 | |
| R O | LD A,R | ED 5F | R | SET 6,(IY+d) | FD CB d F6 | |
| R O | LD B,(HL) | 46 | R | SET 6,A | CB F7 | |
| R O | LD B,(IX+d) | DD 46 d | R | SET 6,B | CB F0 | |
| R O | LD B,(IY+d) | FD 46 d | R | SET 6,C | CB F1 | |
| R O E | LD B,A | 47 | R | SET 6,D | CB F2 | |
| R O E | LD B,B | 40 | R | SET 6,E | CB F3 | |
| R O E | LD B,C | 41 | R | SET 6,H | CB F4 | |
| R O E | LD B,D | 42 | R | SET 6,L | CB F5 | |
| R O E | LD B,E | 43 | R | SET 7,(HL) | CB FE | |
| R O E | LD B,H | 44 | R | SET 7,(IX+d) | DD CB d FE | |
| R O E | LD B,L | 45 | R | SET 7,(IY+d) | FD CB d FE | |
| R O E | LD B,n | 06 n | R | SET 7,A | CB FF | |
| R O | LD BC,(nn) | ED 4B nnL nnH | R | SET 7,B | CB F8 | |
| R O | LD BC,nn | 01 nnL nnH | R | SET 7,C | CB F9 | |
| R O | LD C,(HL) | 4E | R | SET 7,D | CB FA | |
| R O | LD C,(IX+d) | DD 4E d | R | SET 7,E | CB FB | |
| R O | LD C,(IY+d) | FD 4E d | R | SET 7,H | CB FC | |
| R O E | LD C,A | 4F | R | SET 7,L | CB FD | |
| R O E | LD C,B | 48 | R | SLA (HL) | CB 26 | |
| R O E | LD C,C | 49 | R | SLA (IX+d) | DD CB d 26 | |
| R O E | LD C,D | 4A | R | SLA (IY+d) | FD CB d 26 | |
| R O E | LD C,E | 4B | R | SLA A | CB 20 | |
| R O E | LD C,H | 4C | R | SLA B | CB 21 | |
| R O E | LD C,L | 4D | R | SLA C | CB 22 | |
| R O E | LD C,n | 0E n | R | SLA D | CB 23 | |
| R O | LD D,(HL) | 56 | R | SLA E | CB 24 | |
| R O | LD D,(IX+d) | DD 56 d | R | SLA H | CB 25 | |
| R O | LD D,(IY+d) | FD 56 d | R | SLA L | CB 27 | |
| R O E | LD D,A | 57 | R | SRA (HL) | CB 2E | |
| R O E | LD D,B | 50 | R | SRA (IX+d) | DD CB d 2E | |
| R O E | LD D,C | 51 | R | SRA (IY+d) | FD CB d 2E | |
| R O E | LD D,D | 52 | R | SRA A | CB 2F | |
| R O E | LD D,E | 53 | R | SRA B | CB 28 | |
| R O E | LD D,H | 54 | R | SRA C | CB 29 | |
| R O E | LD D,L | 55 | R | SRA D | CB 2A | |
| R O E | LD D,n | 16 n | R | SRA E | CB 2B | |
| R O | LD DE,(nn) | ED 5B nnL nnH | R | SRA H | CB 2C | |
| R O | LD DE,nn | 11 nnL nnH | R | SRA L | CB 2D | |
| R O | LD E,(HL) | 5E | R | SRL (HL) | CB 3E | |
| R O | LD E,(IX+d) | DD 5E d | R | SRL (IX+d) | DD CB d 3E | |
| R O | LD E,(IY+d) | DF 5E d | R | SRL (IY+d) | FD CB d 3E | |
| R O E | LD E,A | 5F | R | SRL A | CB 3F | |
| R O E | LD E,B | 58 | R | SRL B | CB 38 | |
| R O E | LD E,C | 59 | R | SRL C | CB 39 | |
| R O E | LD E,D | 5A | R | SRL D | CB 3A | |
| R O E | LD E,E | 5B | R | SRL E | CB 3B | |
| R O E | LD E,H | 5C | R | SRL H | CB 3C | |
| R O E | LD E,L | 5D | R | SRL L | CB 3D | |
| R O E | LD E,n | 1E n | R | SUB (HL) | 96 | |
| R O | LD H,(HL) | 66 | R | SUB (IX+d) | DD 96 d | |
| R O | LD H,(IX+d) | DD 66 d | R | SUB (IY+d) | FD 96 d | |
| R O | LD H,(IY+d) | FD 66 d | R O E | SUB A | 97 | |
| R O E | LD H,A | 67 | R O E | SUB B | 90 | |
| R O E | LD H,B | 60 | R O E | SUB C | 91 | |
| R O E | LD H,C | 61 | R O E | SUB D | 92 | |
| R O E | LD H,D | 62 | R O E | SUB E | 93 | |
| R O E | LD H,E | 63 | R O E | SUB H | 94 | |
| R O E | LD H,H | 64 | R O E | SUB L | 95 | |
| R O E | LD H,L | 65 | R O E | SUB n | D6 n | |
| R O E | LD H,n | 26 n | R | XOR (HL) | AE | |
| R O | LD HL,(nn) | 2A nnL nnH / ED 6B nnL nnH | R | XOR (IX+d) | DD AE d | |
| R O | LD HL,nn | 21 nnL nnH | R | XOR (IY+d) | FD AE d | |
| R O | LD I,A | ED 47 | R O | XOR A | AF | |
| R O | LD IX,(nn) | DD 2A nnL nnH | R O | XOR B | A8 | |
| R O | LD IX,nn | DD 21 nnL nnH | R O | XOR C | A9 | |
| R O | LD IY,(nn) | FD 2A nnL nnH | R O | XOR D | AA | |
| R O | LD IY,nn | FD 21 nnL nnH | R O | XOR E | AB | |
| R O | LD L,(HL) | 6E | R O | XOR H | AC | |
| R O | LD L,(IX+d) | DD 6E d | R O | XOR L | AD | |
| R O | LD L,(IY+d) | FD 6E d | R O | XOR n | EE n |
